Cheap Prefabricated House With Eps Cement Sandwich Wall Panel Concrete Partition Wall Panel Prefab House

FOB Reference Price:Get Latest Price
US $165-180 / Square Meters | 100 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TY
Model Number:
TY-prefab house
Panel Material:
Nonmetal
Type:
Eps cement sandwich wall panel house
Construction:
steel structure, eps cement sandwich wall panel
House type:
Design at the customer request
Product name:
Prefab house with steel structure and Wall Panel
House Advantage:
low cost, anti-earthquake,sound proof, rapid installation
Certificate:
ISO9001
Wall panel Thickness:
60/75/90/100/120/150/180mm
Features:
Easy Operation, thermal insulation,high strength
Prefabricate house and buildings:
steel structure with four kind of wall panel
Application:
village rebuilding, villa, residential area,tourist attraction
Advantage:
High efficiency, high quality, low resource consumption
Supply Ability
Supply Ability:
200000 Square Meter/Square Meters per Year
Packaging & Delivery
Packaging Details
1) 40' HQ container
2) according to your demand
Port
QINGDAO
Lead Time :
10 days after receiving the deposit

prefab house with eps cement sandwich wall panel /lightweight precast concrete partition wall panel house



The features of the wall panel house:

one structure:  steel structure
four kind of wall panels:  external  wall panel, internal wall panel, roof panel, floor board

Wall panel with steel structure for building house ,the house is shock resistance /earthquake proof and energy saving;
The steel strcuture and the wall panel are all be reused ;





Wall panel house compared with brick :

1.)The wall panel could be reused;
2.)The solid waste such as:Fly ash could be used as raw material for making wall panel ,it saves      production cost ,and environmental friendly ;
3.)The size of the wall panel is more bigger than brick ,for building wall panel house will be faster than brick house;
4.)the installation of the wall panel house is simple ,shortening the constrction period ;Save labor cost;
5.)The surface of the wall panel is flat and smooth,it could putty directly after finished the installation for the wall panel ;It can save comprehensive cost
6.)Different thickness wall panel ,for eg.:90/100/120/150/180/200mm ,it can meet your different request ;
7.)Wall panel house is lighter than brick house ,it is shock resistance and earthquake proof
8.)Wall panel house can increase the using area of the building;





Raw materials for making this kind of wall panel

Cement +fly ash or the other solid waste +eps +sand +water and so on ;







Wall panel Features



The specification of the wall panel: 2440mm*610mm*60/75//90/120/150/180mm







Wall Panel Technical Parameters



No.Test ItemsChina standardProduct test
1Compressive strength≥3.5Mpa≥3.7Mpa
2Drying shrinkage value≤0.6mm/m≤0.37mm/m
3Hanging force≥1000N without 0.5mm crack in 24hours≥1000N without 0.5mm crack in 24hours
4Shock resistanceNo damaged that Impacting of 30Kg sandbag five times No damaged that Impacting of 30Kg sandbag five times
5Bending resistance≥1.5times of wallborad≥1.5times of wallborad
6Radioactivity

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

7Areal density≤90Kg/m2≤43Kg/m2
8Sound insulation≥35dB43dB
9Fire resistance limit≥1h≥1h
10Combustion performanceA1 or A2A1

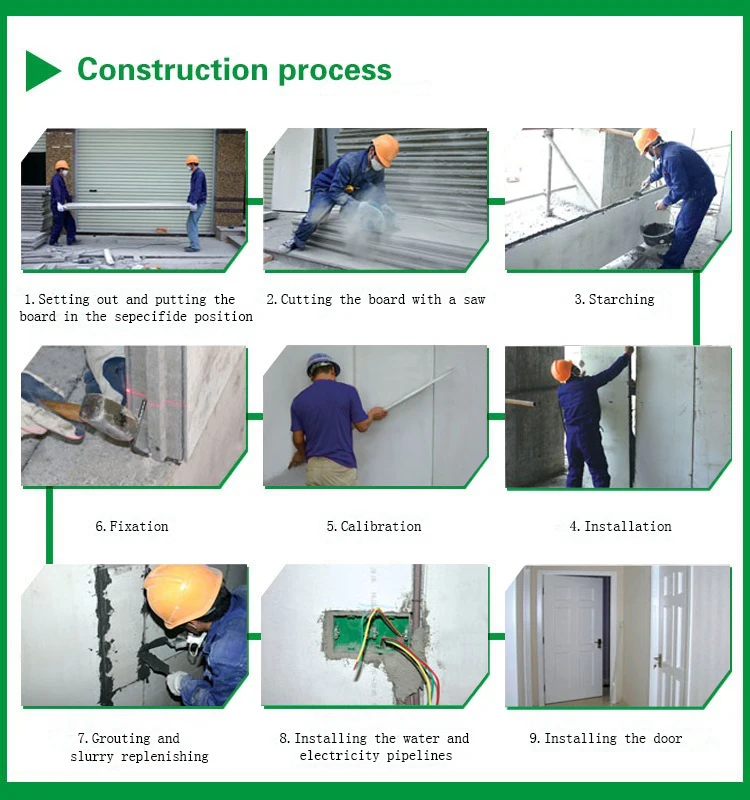

Construction process

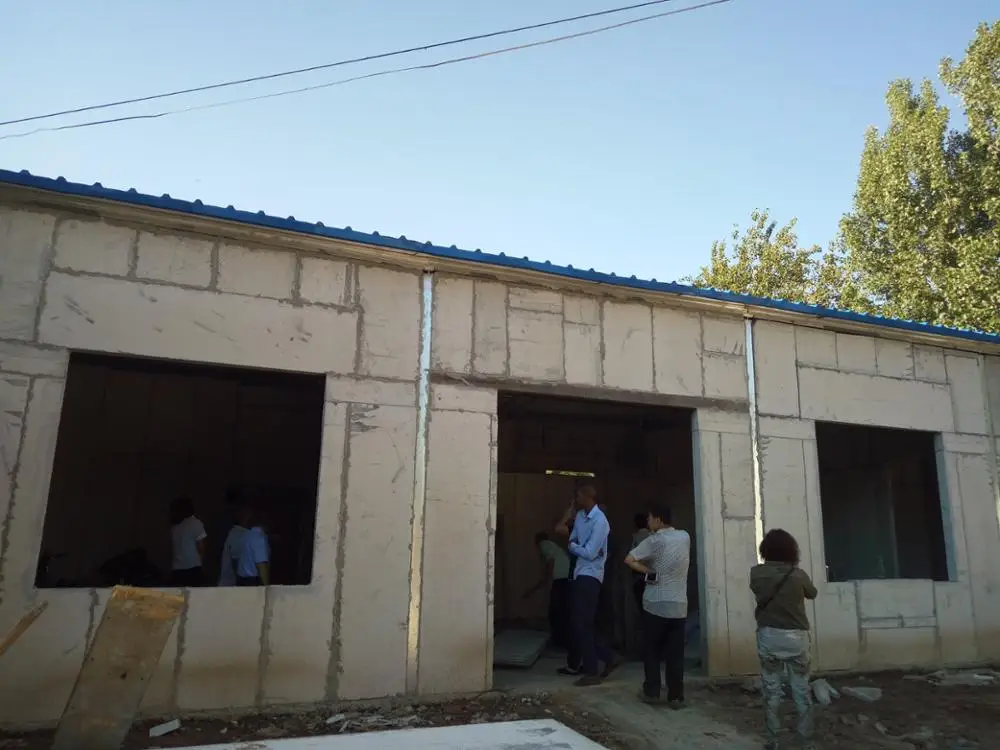

Finished house







Certificate



 Why choose us

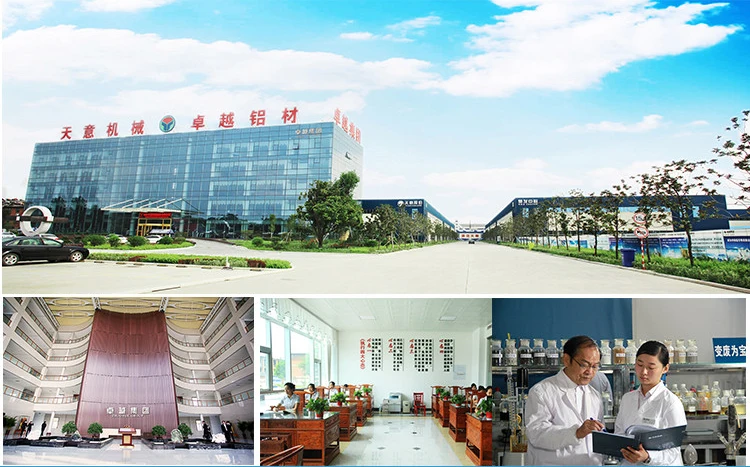

About us

Shandong Tianyi Machinery Co., Ltd.A national high-tech enterprise covers an area of 200000 m² and owns a modernized standard workshop of 80000 m².The company is a leading enterprise which is devoted to research and solution of solid waste.
Main products:
1.EPS cement wall panel production line
2.Light wall panel production line,
3.Foamed cement insulation board production line
4.Gypsum wall panel production line
5.PC equipment
The products reach above 40% of the market share in the industry.The products are sold well all lover the country and exported to more than 30 countries and regions, such as Russia, Indonesia and Syria, etc.With a high-quality customer base of more than 4000 enterprises.
