Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TY
  • Model Number: Lightweight Wall Panel Machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: 3D Wall Panel Making Machine
  • wall panel: compound wall panel production line
  • Overall dimension(mm): 3030*1190*2500
  • Total power(kw): 23.75
  • Normal Wall panel size: 90/120mm type
  • Diameter: 90/120mm type
  • Weight: 5 T
  • Production: 200 sets/month
  • Method: Hydraulic Pressure
  • Color: customized

Packaging & Delivery

Packaging Details Wall Panel Making Machine
nude
Delivery Time Shipped in 25 days after payment

China Top Rank Quality Assurance Lightweight Precast Concrete 3D Wall Panel Making Machine For Produce Pvc Wall Panel

  TIANYI precast internal concrete partition wall panel making machines

                                Machinery Paramenters

   Overall dimension (LxWxH)mm

                3030x1190x2500
         Total power(kw)                    23.75
  Hydraulic working pressure(Mpa)                      8
  Capacity of hydraulic tank(L)                      70
  Maximum hydraulic working      pressure(Mpa)                      16
 Power of vibration system(kw)                     0.75
 Power of heating system(kw)                      20

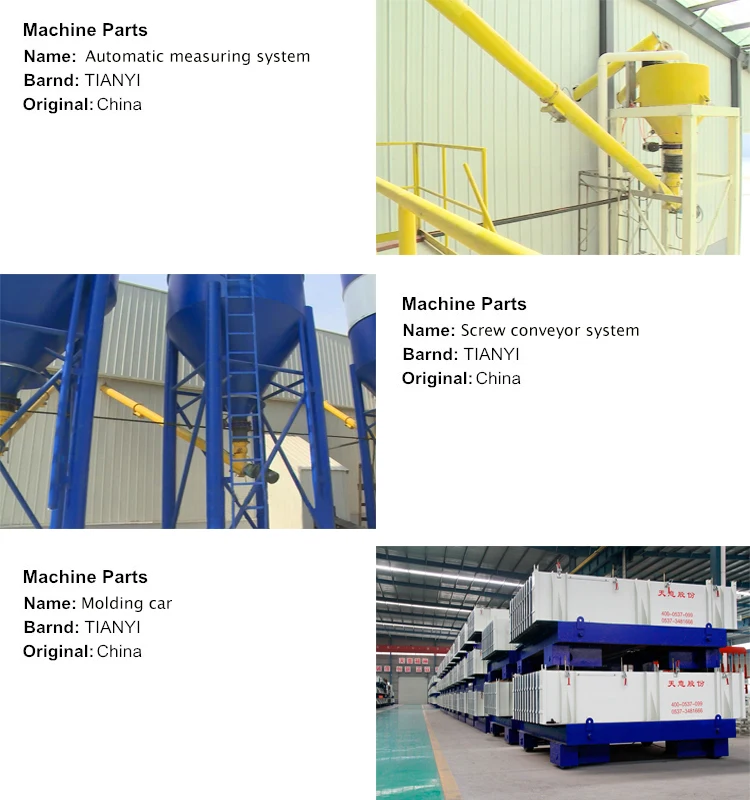

     Structural compositionHost machine, hydraulic system, power distribution system, heating system,vibration system, core tubles

                         Raw material of lightweight wall panel

    NO.                         Material                            Price(¥)/m²
     1                         Cement                        10
     2                         Coal ash                         0.5
     3                         Sand                        0.4
     4                         Additive                        1.5
     5                         Labor cost                          2
     6                water and electricity                        0.5
     7                        Other cost                        0.1

                                  Finished products

Test ltems         National standard      Actual index
Compressive strength               ≥3.5MPa            ≥3.7MPa
Drying shrinkage               ≤0.6mm/m            0.37mm/m
Hanging force≥1000N without 0.5mm crack in 24 hours≥1000N without 0.5mm crack in 24 hours
Shock resistancewithout crack shocked by 30Kg sandbag for 5 timeswithout crack shocked by 30Kg sandbag for 5 times
Sound insulation                   ≥35dB                 43dB

                               Our unique advantages

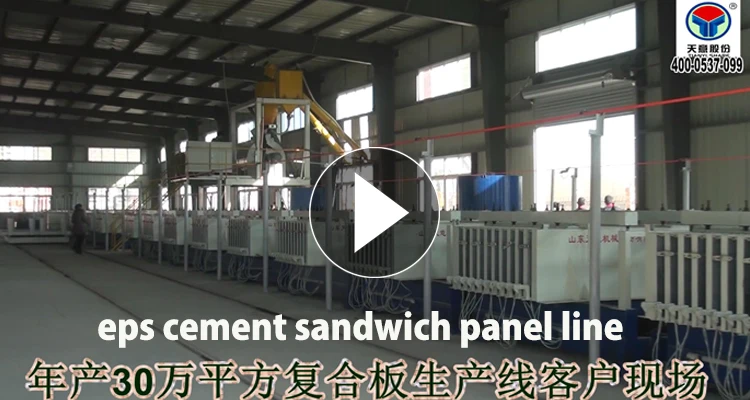

                                 Production process

                                  Our company

                                    Why choose us



                                           Shipping
