Minitype Concrete Fence Molds Making Machines/Precast Boundary Wall Machine

FOB Reference Price:Get Latest Price
US $4,500-55,000 / Sets | 1 Set/Sets fence mold (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TY
Model Number:
Lightweight Wall Panel Machine
Color:
Yellow
Raw material:
Cement
Name:
Light Weight Wall Panel Machine
Type:
Automatic
Advantages:
High Efficent
Usage:
Producing Wall Panel
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
2000 Set/Sets per Year fence mold
Packaging & Delivery
Packaging Details
standard export packing
Port
Qingdao
Lead Time :
15 days



Product Description

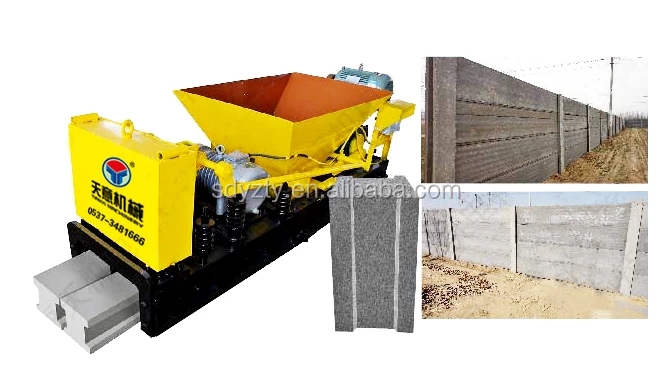

concrete fence molds making machines/precast boundary wall machine


Precast concrete fence machine is working on a cement platform, it uses prestressed reinforcement as guidance in advance, through the power of the reducer drive the connecting rod for reciprocatingmotion, by the pushing plate pushed freefall concrete material into the mold, combined with the upper vibrator vibration force, extrusion molding, at the same time using the reaction of pushing plate, make the machine to overcome the friction from contact with the ground and the friction of the product, walking forward along the prestressed force intermittently, and then form a neat precast products, then cut into the required length after curing finished products.



ModelPowerVoltageDimensionDia of holes
140*140*25.1kw380v2.2*0.75*0.9mNo holes
180*200*25.7kw380v2.1*0.95*0.9m42mm
200*240*26.5kw380v2.5*0.95*0.9m76mm

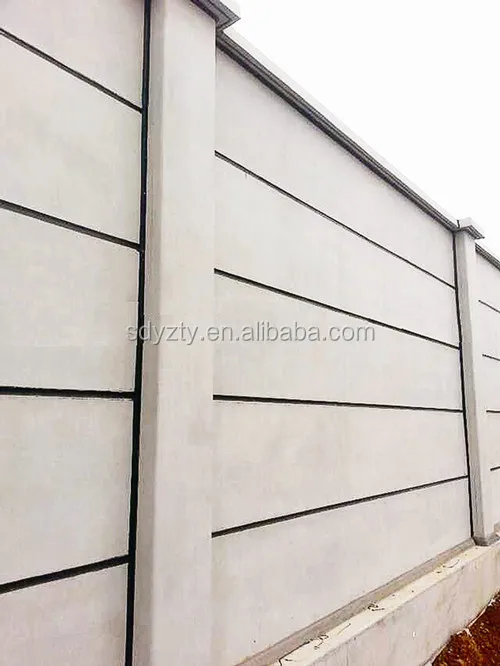

Finished product






 fence wall_.jpg




Advantage:

1. Low cost   2. Recycling use   3. Attractive appearance.

4. Short construction period.  5. High safety.

6. Environmental protection.    7. Weather protected.



Raw materials

material





Company Information

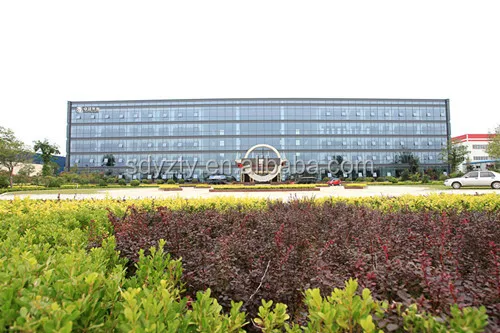

 Shandong Tianyi Machinery Co., Ltd. a national high-tech enterprise covers an area of 200000 squ,m and owns a modernized standard workshop of 80000 squ.m. the company is a leading enterprise which is devoted to research and solution of solid waste. The main products include compound wall panel production line, light wall panel production line, foame cement insulation board production line, gypsum wall panel production line, which reaches above 40% of the market share in the industry, The products are sold well all over the country and exported to more than 30 countries and regions, such as Russia, Indonesia and Syria etc.

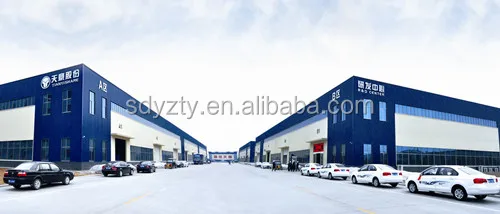

factory


Our Services

The most important part of our advantages is not only about the machine, but also

 about the formulation.  We can make the best formulation for our customers

because we have rich experience in this filed.



We will design engineers to help install and test the machine until the customers can make products by themselves.  We will also help our customers have the best

formulation which can help them make the best-quality panels at the lowest cost.



cooperation





 Tianyi welcome you!! we are here, where are you, my friend?
