Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TY
  • Model Number: Lightweight Wall Panel Machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Lightweight Wall Panel Machine
  • workers number: 3-5 persons
  • Raw materials: Cement
  • Color: Blue
  • Use: Exterior Wall Panels
  • Main process: Forming Demoulding
  • Type: Ful-automation
  • Materials: High Strength Steel
  • Advantage: High Efficent

Packaging & Delivery

Packaging Details standard seaworthy packing
Delivery Time 25 days after prepayment

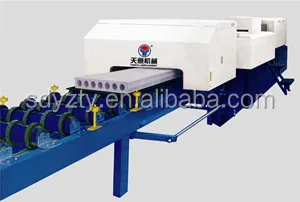

  Low Cost Lightweight Partition Wall Panel Extruder Forming Wall Panel Making Machine

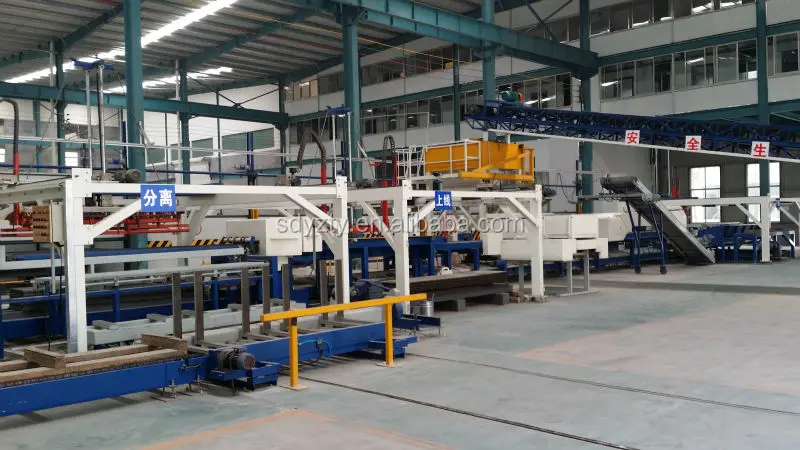

The extruded wall panel production line is featured by compact structure, high degree of automation

 and fixed primary equipment. The materials will be extruded and vibrated at the same time in wall panel

 molding and the wall panel will be molded though continuous automatic vibration and extrusion to

guarantee the good compactness and overall dimensions of wall panel. Initial setting maintenance is

 made after molding. Semi-finished wall panel moves with convenience, flexibility and high efficiency.

Extrusion screw frequency control is adopted in molding process. The molding dense degree of the ash

plate is adjusted and controlled by a central controller to realize the continuous automatic assembly line

 of the ash plate. As the stiff mixture with low water cement ratio is adopted for the extrusion molding,

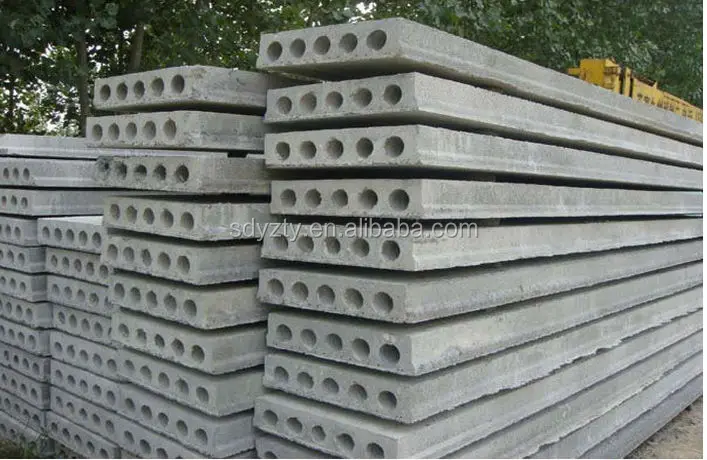

hollow wall panel with high strength and high compactness can be produced. Automatic continuous

production, high efficiency and high quality consistency can guarantee high quality of the wall panel.

The produced wall panel is widely used in frame structure or steel structure buildings.

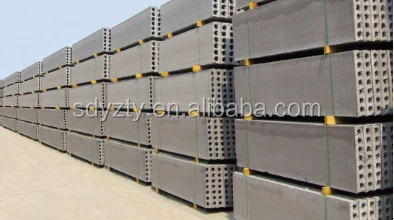

The lightweight wall panel produced by this equipment through utilizing all kinds of solid waste,

 industrial slag, coal ash, plant straw, shale and other materials is a kind of new building materials

of environmental protection, energy saving, waste recycling in line with the construction module.





Average power

≤45 kw

Board delivery speed


Number of single work shift workers


Hourly output

80 squ.m

Annual capacity

300,000 squ.m

Wall panel specification:


2.4-3.3 m




90,100,120 mm

Wall panel quality

Conform to JG3063-1999 standard







1 Green environmental protection: the raw materials are from high temperature smelting slag (after water slag, fly ash, slag), cementitious materials as cement, the products are inorganic, no harm to the environment and human body; no pollution, production process emissions free, environment-friendly building materials.

2 Weight: about 50% weight less than the traditional use of red brick, lime sand brick.

3 High strength: the strength of >5MPa

4 Small shrinkage: the drying shrinkage value ≤ 0.6 (mm/m)

5.Insulation: 90mm × 600mm2800mm, 7 hole wall, hole rate is up to 34%, so it has good heat insulation effect.

6 Fire proof: using cement as cementitious material, the cement is the hydraulic products, has good water resistance, water does not jump shell not skin. The fire resistance limit is high, is also very good fireproof material.

7 No radiation: index is far lower than the national standard.

8 Construction of efficient width: qualitative modulus, highly customized special size field cutting, splicing and assembling construction; the smooth surface, no powder sand ash; sawing, drilling, hole, conveniently buried pipeline; shorten the construction time, saving the cost.

9 Significant economic benefits: the biggest product characteristics of light weight, reduces the overall load of building, reduce the construction cost, increase the living area.








We are a leading supplier of light wall  panel  machine in China, many governments are cooperating with us for their housing projects with our machine.

Welcome you to come here!! we are waiting for you.
