Fiber Cement Board Production Line,Particle Board Machinery

FOB Reference Price:Get Latest Price
US $15,000-85,600 / Sets | 1 Set/Sets light weight wall panel production line (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TY
Model Number:
Lightweight Wall Panel Machine
After-sales Service Provided:
Engineers available to service machinery overseas
color:
white& blue
Raw materials:
Cement
Name:
Light Weight Wall Panel Machine
Main process:
Forming Demoulding
Type:
Ful-automation
Advantage:
High Efficent
SupplyAbility
SupplyAbility:
2000 Set/Sets per Year light weight wall panel production line
Packaging & Delivery
Packaging Details
standard seaworthy packing
Port
Qingdao
Lead Time :
20 working days after payment

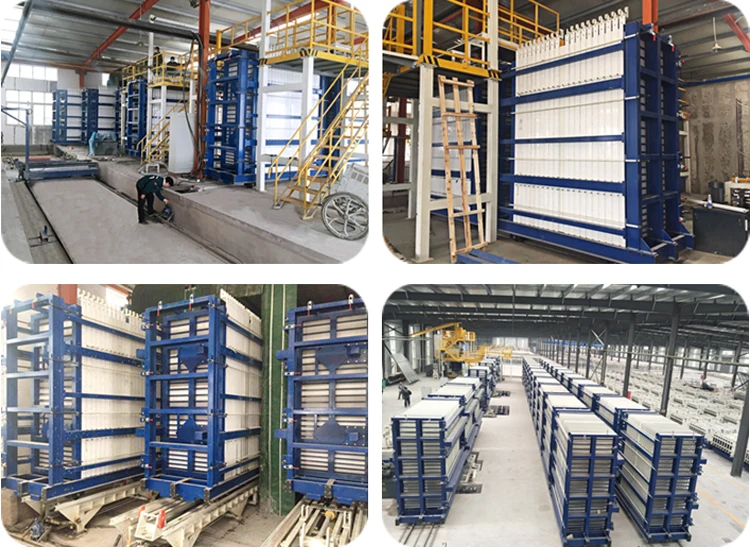

lightweight wall panel production line


                         lightweight wall panel production line

Vertical Rotation EPS Cement Wall Panel Produciton Line.jpg

                                Machinery Paramenters


   Overall dimension (LxWxH)mm

                3030x1190x2500
         Total power(kw)                    23.75
  Hydraulic working pressure(Mpa)                      8
  Capacity of hydraulic tank(L)                      70
  Maximum hydraulic working      pressure(Mpa)                      16
 Power of heating system(kw)                      20
     Structural compositionHost machine, hydraulic system, power distribution system, heating system,vibration system, core tubles

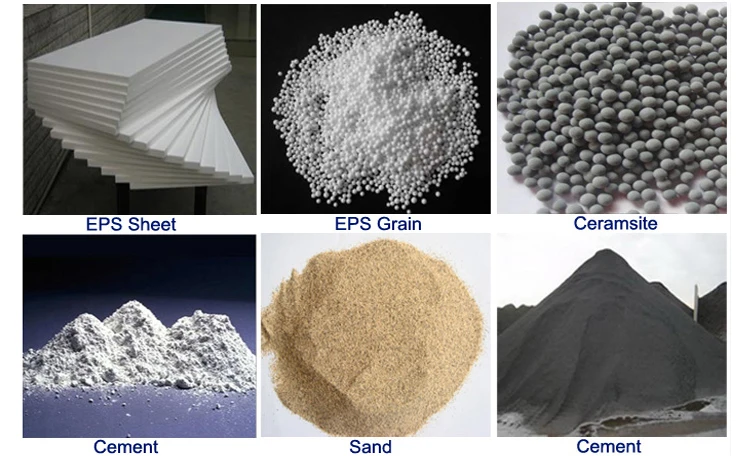

                         Raw material of lightweight wall panel


    NO.                         Material                            Price(¥)/m²
     1                         Cement                        10
     2                         Coal ash                         0.5
     3                         Sand                        0.4
     4                         Additive                        1.5

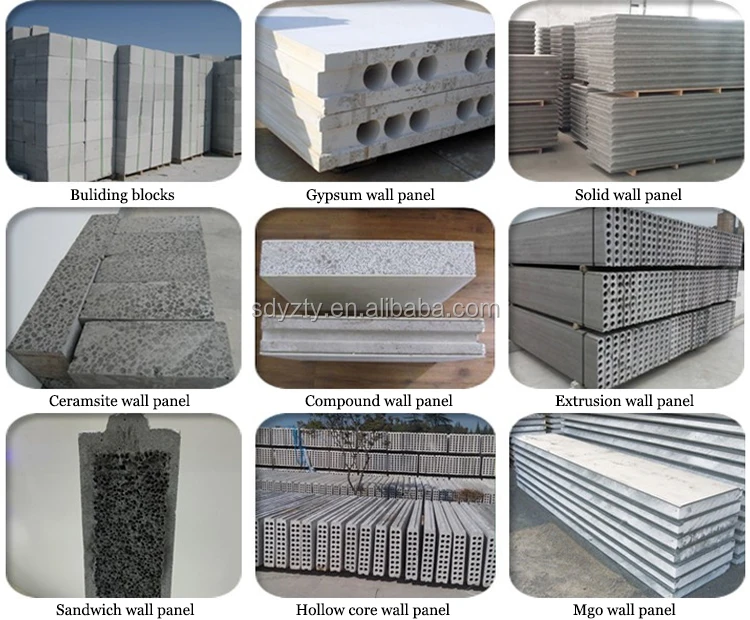

                                  Finished products

.jpg

Test ltems           National standard      Actual index
Compressive strength                   ≥3.5MPa            ≥3.7MPa
Drying shrinkage                   ≤0.6mm/m            0.37mm/m
Hanging force≥1000N without 0.5mm crack in 24 hours≥1000N without 0.5mm crack in 24 hours
Areal density                  ≤90kg/m²            ≤43kg/m²

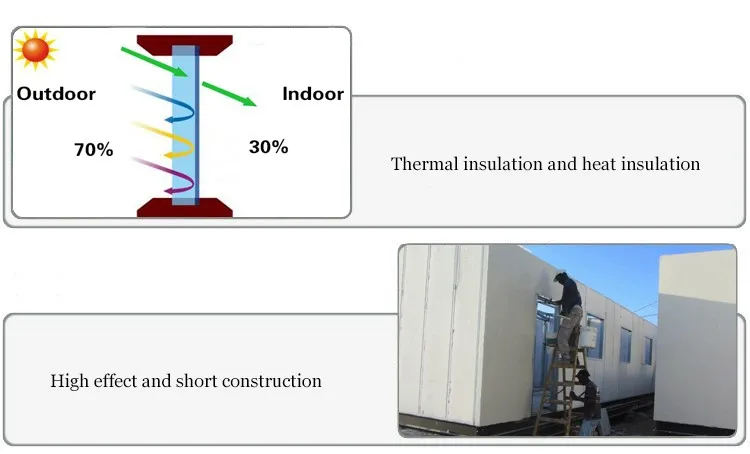

                               Our unique advantages

31

                                 Production process

                                  Our company

3

                                    Why choose us



 .jpg
